ESTIMATION OF TROPHIC STATES IN WARM TROPICAL LAKES AND RESERVOIRS OF LATIN AMERICA BY USING GPSS SIMULATION

Mario A. Ortiz-JimÉnez, JosÉ de Anda and Ulrich Maniak

Mario A. Ortiz-Jiménez. Chemical Engineer, Instituto Tecnológico de Tepic. Mexico. M.Sc. in Statistics, Colegio de Posgraduados. Mexico. Ph.D. Candidate at the Postgraduate Program in Science and Technology, Consejo Nacional de Ciencia y Tecnología, Mexico. Professor, Instituto Tecnológico de Tepic. Mexico. e-mail: ojimez@nayar.uan.mx

José de Anda. Chemical Engineer, Universidad de Guadalajara, Mexico. M.Sc. in Chemical Engineering, Universidad Autónoma Metropolitana-Iztapalapa, Mexico. Ph. D. in Earth Sciences, Universidad Autónoma de México. Researcher, Centro de Investigación y Asistencia en Tecnología y Diseño del Estado de Jalisco, A.C. Address: Normalistas 800, CP 44270 Guadalajara, Jalisco, Mexico. e-mail: janda@ciatej.net.mx

Ulrich Maniak. Doctor-Engineer, Leichtweiss-Institut für Wasserbau, Abteilung Hydrologie und Wasserwirtschaft, Braunschweig, Germany. Emeritus Professor, Leichtweiss-Institut für Wasserbau, Germany. e-mail: U.Maniak@tu-bs.de

Summary

This paper proposes a stochastic simulation model to determine the boundaries of the trophic states of warm-water tropical lakes and reservoirs in Latin America based on statistical correlation and MonteCarlo techniques. The model was developed using GPSS as a discrete simulation language and calibrated by correlating a set of state variables of 27 Latin American lakes and reservoirs monitored by the Pan American Center of Sanitary Engineering and Environmental Sciences (CEPIS). In order to warrant a better stability in the resultant probabilistic behavior of the dependent variable, 10000 new virtual water bodies with different trophic states were generated to produce a trophic state index based on the total phosphorus concentration. Based on the obtained results, it is concluded that the applied methodology is appropriate to determine the boundaries of the trophic states of warm-water tropical lakes and reservoirs and is also able to generate results similar to those obtained using the existing applied estimation techniques.

Estimación de los estados tróficos en lagos y embalses cálidos tropicales en Latinoamérica usando simulación GPSS

Resumen

En este trabajo se propone un modelo de simulación estocástica para determinar los límites de los estados tróficos en lagos y embalses cálidos tropicales en Latinoamérica, basada en una correlación estadística y en técnicas de MonteCarlo. El modelo se desarrolló en el lenguaje de simulación discreto GPSS y fue calibrado con un conjunto de variables de estado de 27 lagos y presas de América Latina monitoreados por el Centro Panamericano de Ingeniería Sanitaria (CEPIS). A fin de garantizar una mejor estabilidad en el comportamiento probabilístico de la variable dependiente a partir de las distribuciones muestrales de las variables predictivas, se generaron 10000 cuerpos de agua de los diferentes estados tróficos y se produjo un índice de estado trófico basado en la concentración del fósforo total. Sobre la base de los resultados obtenidos se concluye que la metodología es apropiada para estimar los límites entre los estados tróficos de lagos y embalses y produce resultados similares a los obtenidos por otras metodologías.

EstimaÇÃO dos estados tróficos eM lagos E REPRESAS cálidos tropicaIs NA américa laTINA usando simulaÇÃO GPSS

Resumo

Neste trabalho se propõe um modelo de simulação estocástica para determinar os limites dos estados tróficos em lagos e represas cálidos tropicais em Latino América, baseada em uma correlação estatística e em técnicas de MonteCarlo. O modelo se desenvolveu na linguagem de simulação discreta GPSS e foi calibrado com um conjunto de variáveis de estado de 27 lagos e represas de América Latina monitorizada pelo Centro Panamericano de Engenharia Sanitária (CEPIS). Com o fim de garantir uma melhor estabilidade no comportamento probabilístico da variável dependente a partir das distribuições amostrais das variáveis preditivas, foram gerados 10.000 corpos de água dos diferentes estados tróficos e se produziu um índice de estado trófico baseado na concentração do fósforo total. Sobre a base dos resultados obtidos se conclui que a metodologia é apropriada para estimar os limites entre os estados tróficos de lagos e represas e produz resultados similares aos obtidos por outras metodologias.

KEY WORDS / Trophic State / Eutrophication / GPSS / Simulation Models / Lakes / Reservoirs /

Received: 09/05/2005. Modified: 03/11/2005. Accepted: 04/11/2006.

In the last 50 years the extensive construction of dams and reservoirs in Latin America has produced a large number of artificial water bodies that have interfered with the hydrology and ecology of several basins, sub-basins and rivers. Most dams were built initially to generate electricity, but were later also used for other purposes, like fishery, irrigation, transportation, water supply source, sports, and recreation. Artificial and natural fresh water bodies have suffered under nutrient contamination, especially nitrogen and phosphorus, originated from point and diffuse sources, mainly municipal and industrial sewages and agriculture runoff. When an excessive amount of nutrients enter to the system, contaminating the water body, their elimination is technically difficult and costly (DVWK, 1988; UNEP, 1999). The quantity of organic matter in aquatic ecosystems defines their trophic state, which serves as an indicator of the contamination grade of the system. The trophic state depends on several biotic and abiotic factors. One of this factors is the in-lake total P concentration, which compared to other water quality parameters, could be considered as the most studied indicator to determine the trophic state in lakes and reservoirs (Konesky et al., 1999). In freshwater bodies the total P is widely accepted as the limiting nutrient, and controlling the total P inputs is regarded as essential in reversing freshwater eutrophication (OECD, 1982; Hecky and Kilham, 1988). There are numerous case studies of the reversal of eutrophication processes resulting from the reduction of P loadings (Willander and Personn, 2001).

The OECD (1982) determined the boundary values between oligotrophic and mesotrophic states for temperate lakes as 0.008mg·l-1 P, and the boundary values between mesotrophic and eutrophic states was fixed at 0.267mg·l^-1 P. But these boundaries values are not applicable to warm tropical lakes and reservoirs in Latin America (Castagnino, 1983). Salas (2003) proposed a methodology to assess the eutrophication grade in warm tropical lakes, and a new alternative is proposed herein to improve the assessment process by using a simulation model.

Due to the requirement of a higher grade of mathematical complexity, few environmentalists use simulation techniques to model ecological problems. For example, Romeu (1995, 1997) briefly outlines a GPSS simulation model of an aquatic ecosystem. Some statisticians are already actively working in ecological problems using GPSS which are regularly publishing their work in refereed journals (Baltzer, 1996). GPSS is a consolidated discrete simulation language focused on the flow of transactions and is usually applied to simulate manufacturing processes (Chisman, 1992). A GPSS simulation consists of a network of blocks, which represents actions linked with a set of transactions, arranged sequentially in different blocks. Therefore the whole simulation is simply a sequence of one transaction entering to one or more blocks, then a new transaction starts, and so on. Modeling a real system is to piece together a set of blocks that cause transactions to behave in a manner resembling the real system (Minuteman Software, 2000).

A simulation model is a representation of the behavior of a set of variables in a system, performed with a computer and reflects, in a single way, the activities in which the variables are related. The simulated system in this work it is not the physical system itself, but it is a system which "generates" a great number of virtual lakes and reservoirs having similar characteristics to that encountered in the Latin American region with the objective of establishing the total P concentration limits between their different trophic states. To cover the goals of this work, the "transaction" is a virtual water body that flows through the system, while a block is defined as any operation that performs that transaction within the simulation model, such as its own generation (GENERATE), its transfer toward a specific block (TRANSFER), assignment of a value to one of its parameters (ASSIGN), evaluation of an arithmetic condition to modify its flow (TEST), and its own ‘destruction’ (TERMINATE). Since transactions take up memory space, all transactions that are no longer needed in the model should be removed in a TERMINATE block. Additionally, the system requires some control instructions such as definition of variables having floating point (FVARIABLE), definition of initiators to generate random numbers (RMULT), start up of the simulation processes (START), etc.

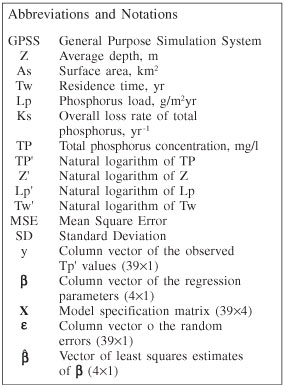

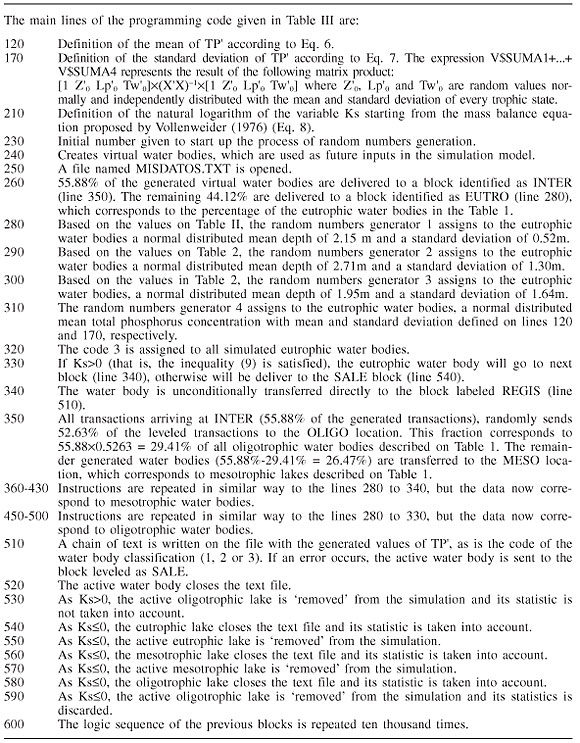

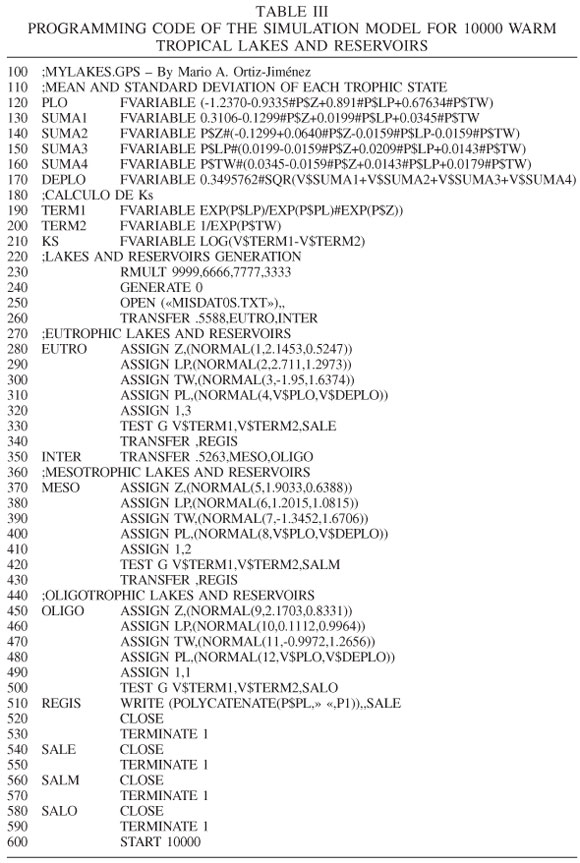

The data requirements of a GPSS simulation model include both parameters and variables. The parameters include particular values of the predictive variables: mean depth, P load and residence time of every water body and of every trophic state, in addition to the predicted total P value calculated from a regression model in function of the three previously mentioned variables. Variables are divided in input and output variables, and both sets of variables are classified as statistical ones.

Input variables include the probabilistic distributions of each one of the predictive variables corresponding to each trophic state, and are obtained from a set of 27 lakes and reservoirs located in the studied region. The output variables include the probabilistic distribution of the total P concentration and the trophic state of each one of the simulated water bodies.

Methodology

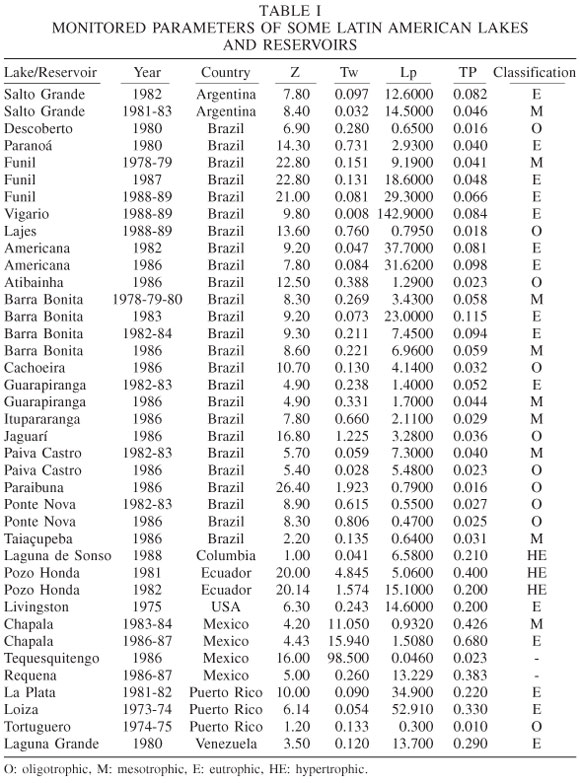

Table I shows a database from 27 Latin American lakes and reservoirs collected by the Pan American Center of Sanitary Engineering and Environmental Sciences (CEPIS, 2001). The information in the database was obtained on the basis of the Clark method to quantify the nutrient load from the tributary streams (Sonzogni et al., 1978), the nutrient export coefficients developed by Rast and Lee (1978), the contribution of living beings considered by Castagnino (1982), and the laboratory APHA standards (13th to 16th eds.). For the trophic state classification of the lakes in Table I, the criteria applied by the Organization for Economic Cooperation and Development (OECD; Vollenweider and Kerekes, 1982, 1983; Salas, 2003) were used. However, the validity of these classification criteria is under discussion (Kietpawpan et al., 2003). According to these authors, out of the total lakes and reservoirs included in Table I, 55.88% would be classified as eutrophic, 29.41% as oligotrophic, and the remainder is mesotrophic.



This work also considered P as the limiting nutrient in Latin American lakes and reservoirs (Salas, 2003). A Kolmogorov-Smirnov test was applied to the TP, Z, Lp, and Tw values showed in Table I. It was found that only their respective natural logarithms underwent a normal behavior (P>0.40). If TP', Z', Lp' and Tw' are the natural logarithms of TP, Z, Lp, and Tw , respectively, it is possible to adjust the next multiple linear regression model to the data showed in Table I, so that

TP'=b₀+b₁Z'+b₂Lp'+b₃Tw'      (1)

where, b₀, b₁, b₂, b₃ are the regression coefficients corresponding to the ordinate at the origin, Z', Lp', and Tw', respectively. The model could be represented as a matrix form as follows:

TP' = Xb+e          (2)

where           (3)

and TP'_i, Z'_i, Lp'_i, Tw'_i (i = 1, 2, …, 39) are the values of the state variables shown in Table I and e_i (i = 1, 2, …, 39) is the error term of TP'_i. For the data reported in Table I, it could be verified that MSE= 0.1222 and the variance-covariance matrix (X'X)-1 is

 (4)

And, therefore, the vector of least squares estimates is

(5)

Finally, the multiple linear model in terms of natural logarithm of total phosphorus (TP') is

TP'=-1.237-0.934Z'+0.891Lp'+0.676Tw'   (6)

R²=0.902; SE=0.056)

If Z'₀, Lp'₀ and Tw'₀ are the particular values of Z', Lp' and Tw' respectively, the standard deviation of the mean value of TP' can be written (Younger, 1979) as

Table II shows the descriptive statistic values of the state variables of the water bodies reported in Table I for each trophic classification.

Because Volenweider and Kerkes (1981) assumed homogeneous standard deviations of TP' for the different trophic status, the standard deviation of TP' was calculated by applying Eq. 6 regardless of the trophic state. Table III shows the programming code of the simulation model carried out on GPSS World Version 4.3 (Minuteman Software, 2000). The goal of the simulation model is to simulate a number of water bodies in each trophic state where the state variables undergo random variations in relationship with their population means. In this way it is possible to warrant a better stability in the probabilistic behavior of the dependent variable from the distributions curves of the predictive variables obtained in the sample of 27 warm tropical lakes and reservoirs. According to the Kolmogorov-Smirnov test applied to the selected sample, it is assumed that such variations follow a normal distribution in relation to the means of the standard deviations reported in Table II. Additionally, it is also assumed that TP' follows a normal distribution in relationship with the mean and standard deviations given by Eqs. 6 and 7, respectively.

To add more realism to the simulation process, only positives values are used for Ks, which was obtained from the mass balance equation proposed by Vollenweider (1976),

(8)

so that all the transactions (lakes and reservoirs) that did not satisfy the restriction

(9)

were excluded.

Results and Discussion

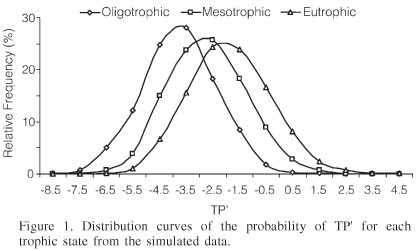

Figure 1 shows the results (outputs) of the simulation model as a probability distribution function of natural logarithm of total phosphorus (TP') for each trophic level. The distribution curves are very close to the normal distribution pattern, and they have the same variance.

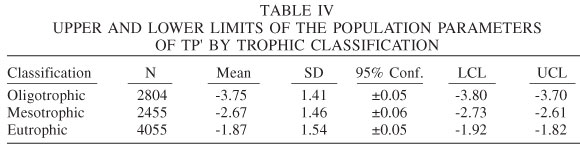

To validate the simulation model, the Z test is used to compare the mean values of TP' of the simulation model with the mean values of the real data. Non-significant differences between the compared means (P>0.32) were encountered. Table IV indicates the estimated 95% of the confidence intervals for the TP' means of each trophic state based on the simulated data.

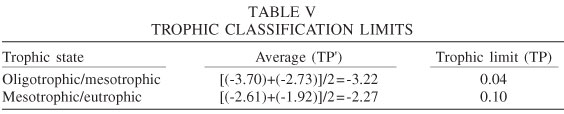

The limit between the oligotrophic and mesotrophic levels was obtained by averaging the upper limit of the 95% confidence interval for the TP' mean of the oligotrophic state and the lower limit of the 95% confidence interval for the TP' mean of the mesotrophic state. Similarly, the limit between the mesotrophic and eutrophic levels was obtained by averaging the upper limit of the 95% confidence interval for the TP' mean of the mesotrophic state and the lower limit of the 95% confidence interval for the TP' mean of the eutrophic state. According with Table V, the limit between the oligotrophic and mesotrophic states was established as the antilog (-3.22)= 0.04mg·l^-1 P and the limit between the mesotrophic and eutrophic states was established as the antilog (-2.27) = 0.10mg·l^-1 P. Vollenweider (1968) established the limits for temperate lakes as 0.01 and 0.03 mg·l^-1 P, respectively.

The proposed GPSS simulation model seems to represent a useful technique to predict the trophic condition of warm tropical lakes and reservoirs. The results are not significantly different from those reported by CEPIS (2001). Utilizing the data reported on Table I, they fixed the limit between the oligotrophic and mesotrophic states as 0.03mg·l^-1and the limit between the mesotrophic and eutrophic states as 0.07 mg·l^-1P, respectively. In contrast, the USEPA (1974) fixed these limits as 0.01 and 0.02mg·l^-1P, and the OECD as 0.008 and 0.0267mg·l^-1P, respectively (Vollenweider and Kerekes, 1982).

The boundaries values predicted in this work for the trophic states in Latin American warm tropical lakes were 4 times higher than the corresponding values estimated in the temperate lakes located in the north hemisphere; nevertheless, they show the same trophic features. According with the OECD and USEPA criteria, a hypertrophic temperate lake has the same total P concentration than a warm tropical mesotrophic lake. This demonstrates that OECD criteria are largely inapplicable to warm tropical lakes. This is because the relative distributions of nutrient N and P in Latin American lakes and those of the OECD study are different in several ways. The main limnological feature to the OECD findings is that P is the nutrient limiting algal growth, because N usually is massively in excess of algal requirements. This is not true in Latin America, where nitrogenous material in fresh waters is much less abundant (Lewis, 2002). In many lakes of this region the relative N to P availability approximates that required for a balanced algal growth and, in some of them, shortage of N limits growth. Water managers aiming to control eutrophication in Latin America lakes are advised to use the OECD predictive equations with utmost caution.

Conclusions and Recommendations

Due to shortage of available trophic data in the Latin American region, a GPSS simulation technique is proposed for determining the trophic status of warm tropical lakes and reservoirs. This technique was applied to obtain a more realistic image of the trophic state of these water bodies and to predict it. The stochastic GPSS simulation models have some advantages when compared to the classical deterministic models: while the sampling of a water body permits to analyze just one picture of the film, simulation permits to have a wider vision of the reality. The simulation models are easier to understand and visualize than the pure analytical methods. They add more realism to the analysis because they introduce variability to the parameters describing the water body and they are cheaper to use because they require less information, time and money to be developed. Simulation models like this can incorporate mathematical descriptions of physical, chemical and biological processes in lakes and reservoirs. If properly designed, these models can assist with management decisions that require considering alternative scenarios. The present study should encourage the practical uses of discrete event simulation in the area of ecological modeling and analysis.

Although this procedure provides a solution to the problem of determining the boundary values for trophic categories, its main disadvantage is its difficult application by managers and technicians having limited simulation modeling knowledge. The strength of this method is that it is strongly supported by the probabilistic distributions of the predictive variables of the water bodies in each trophic state and its effect in the variability of the dependent variable, which permits a better understanding of the trophic states of warm tropical lakes and reservoirs.
